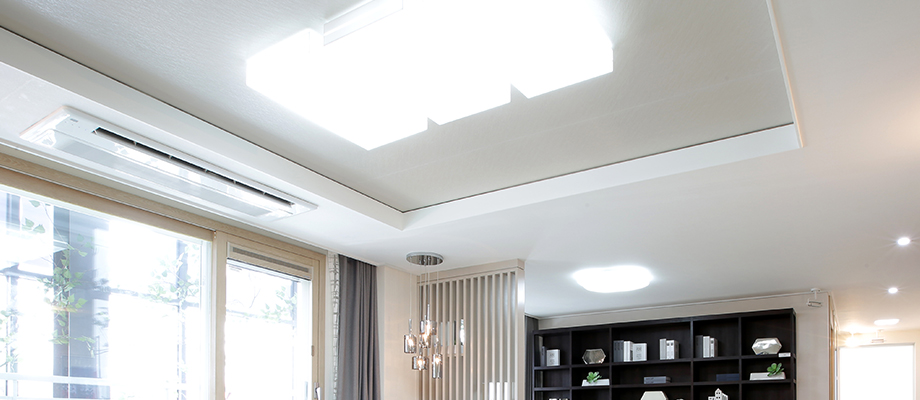

Illumination covers

Illumination covers background image
01 LX PMMA ID (Illumination Diffusion) grade:
Diffusion PMMA for LED illumination covers

The LX PMMA "ID grade," an acrylic diffusion material, is an innovative material that can produce high transmittance and high diffusion properties at the same time, by using a special diffuser and an additive. It maximizes the efficiency of lighting devices as the intensity of the illumination can be adjusted without exposing the source of the LED light and preventing glare. At the same time, it satisfies all of the requirements for illumination covers including the light stability, driving temperature, weather resistance and eco-friendliness.

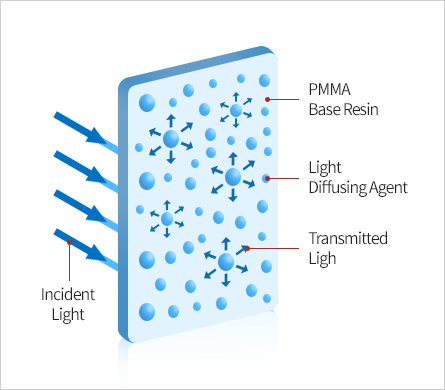

02 Principles of the PMMA ID grade

By using a diffuser that has a different refractive index from the PMMA matrix, this induces a change in the path of the incoming light to show diffusion characteristics, enabling the high transmittance/diffusion characteristics required by LED lighting.

Principles of the PMMA ID grade image
확산 PMMA ID grade

Grade

Thickness

Transmittance (%)

Haze (%)

ID191

2mm

92

15

3mm

92

20

ID193

2mm

91

38

3mm

91

49

ID195

2mm

90

81

3mm

89

89

ID198

2mm

87

96

3mm

83

98

ID188

2mm

82

98

3mm

74

99

ID178

2mm

73

99

3mm

62

99

ID68

2mm

64

99

3mm

54

99

ID1558

2mm

54

99

3mm

46

99

ID1559

2mm

52

99

3mm

45

99

03 ID Grade Product Composition

Base PMMA

General grade

Impact-resistance grade

Heat/
impact resistance

High fluidity/
impact resistance

Diffusion concentration

ID Grade product’s composition image

Example of a product’s composition

  • EG920 ID178

    EG920-ID178

  • HI835S ID1559

    HI835S-ID1559

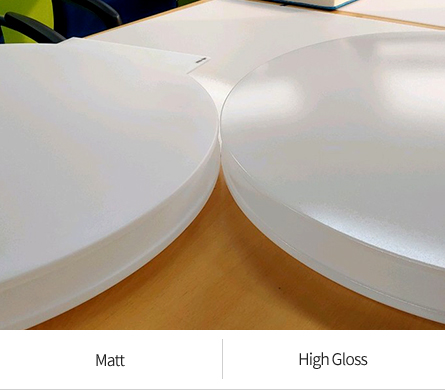

04 LX PMMA Frost Matt grade
  • High Transmittance, High Diffusivity

  • Product applications

Properties

Grade

Thickness

Transmittance (%)

Haze (%)

LF192

1mm

91

47

2mm

90

40

3mm

90

43

LF198

1mm

90

90

2mm

88

96

3mm

84

98

LF188

1mm

90

91

2mm

87

97

3mm

81

99
