PMMA’s paintless applications
LX MMA’s paintless materials offer excellent weather resistance, coloring and anti-scratch properties, and can be used as final parts without going through the existing painting process, making them a good alternative for the purpose of cost reduction and environmental protection. In particular, these materials have been officially approved by global automotive OEMs (Hyundai/Kia, Renault, etc.) for their proven reliability.
- Automobiles: pillars (A~D), side-view mirrors (base cover), various front/rear decorations, trim
- Electric/Electronic products: applicable for various processes to replace painted parts
-

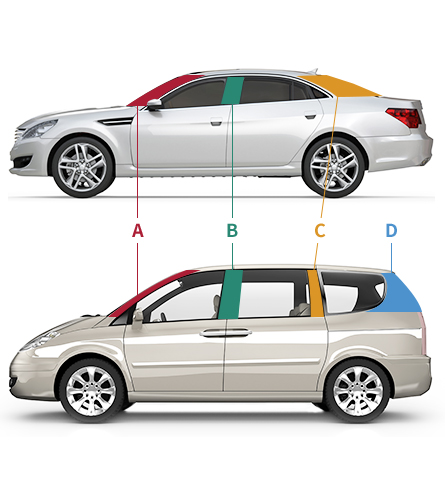

Pillar(A~D)
-

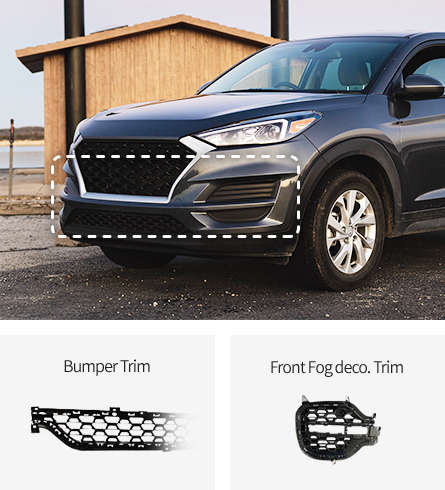

Front/Rear bumper trim
-

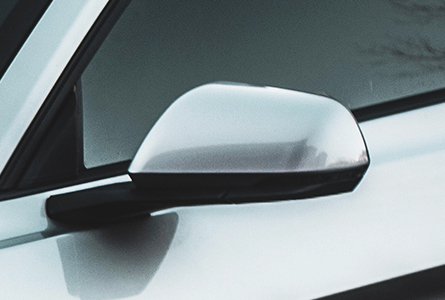

Base cover plate/Housing
-

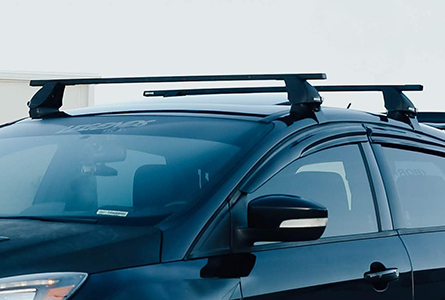

Roof side molding
LX MMA has a variety of grades that are differentiated in terms of their blackness, weather resistance, and anti-scratch properties compared to other materials.
-

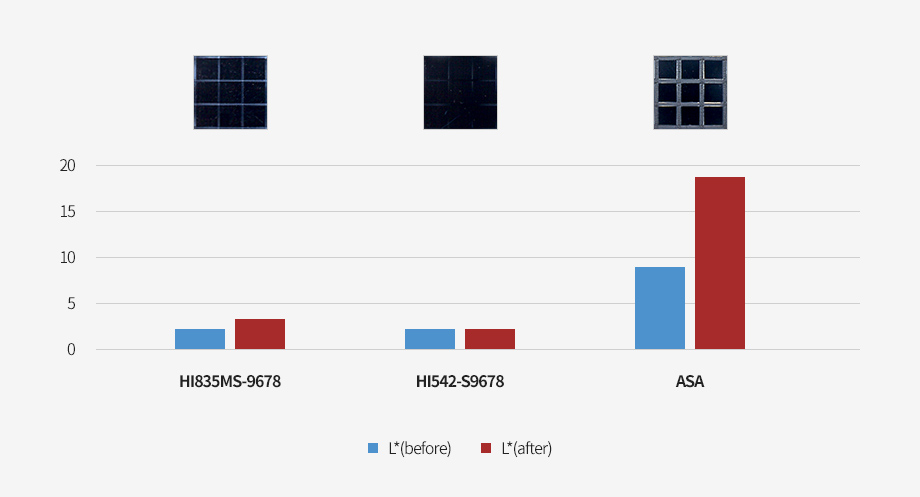

Accelerated weather resistance, SAE J2527
-

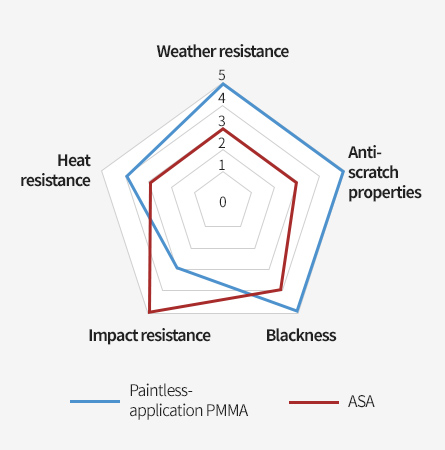

Comparison with ASA resin

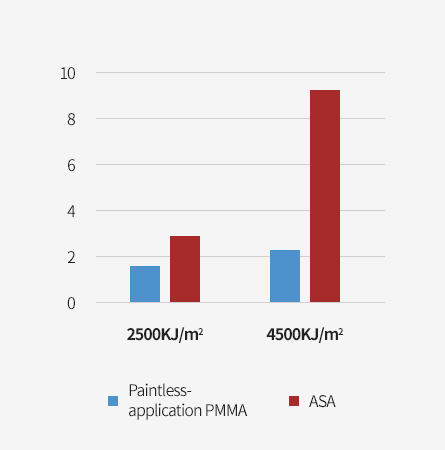

Erichsen scratch
Paintless-application PMMA Properties
|
Item |
Condition |
Unit |
Method |
IH830 |
IH830HF |
IH830HR |
HI835MS |
HI542-S9678 |
HI771-9678 |
HI753-9678 |
HI533-S9678 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Thermal Properties |
Melt Flow Index |
230℃/ |
g/ |
ISO 1133 |
2.4 |
3.8 |
1.6 |
2.0 |
4.0 |
1.2 |
4.0 |
1.0 |
|
VICAT |
B/50 |
℃ |
ISO |
107 |
110 |
118 |
101 |
102 |
101 |
97 |
95 |
|
|
Mechanical Properties |
Charpy |
notched |
kJ/m² |
ISO |
2.0 |
1.8 |
1.8 |
2.5 |
3.8 |
7.1 |
6.3 |
8.3 |
