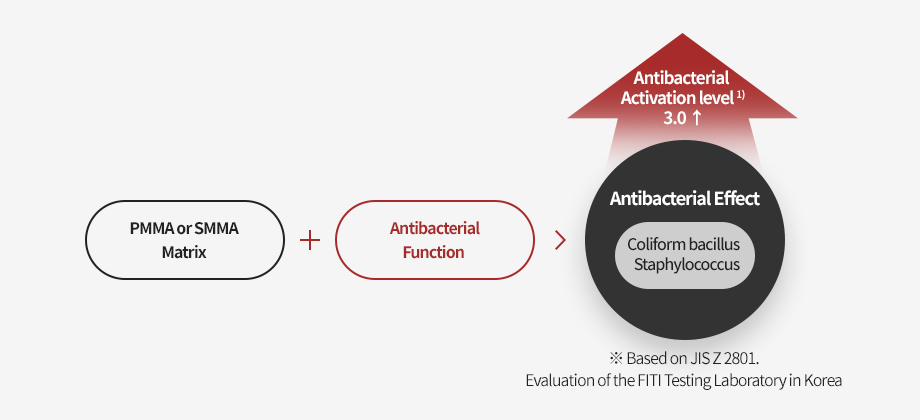

A functional product with antibacterial properties assigned to PMMA or SMMA, which has high transparency and high antibacterial properties for coliform bacillus and staphylococcus by utilizing an anti-bacterial agent suitable for the matrix.
1) The level indicates the difference in the number (logarithm) of surviving cells, between products treated with the antibacterial agent and non-treated products, after 24 hours of culturing the bacteria right after the inoculation. The higher the antibacterial activation level, the better the antibacterial power (an antibacterial activation level of 3.0: 99.9% antibacterial power).
Recommended for surfaces where coliform bacillus and staphylococcus are a concern in everyday life, and for covering dining areas where a clean environment is required.
- Applications of the 3-layer Co-Extrusion Sheet
: When the PMMA or SMMA is used as the extrusion matrix, it is easy to process a co-extrusion sheet.
Applying a layer as a skin about 30μm to 50μm thick enables the antibacterial power to be maintained against coliform bacillus
and staphylococcus.

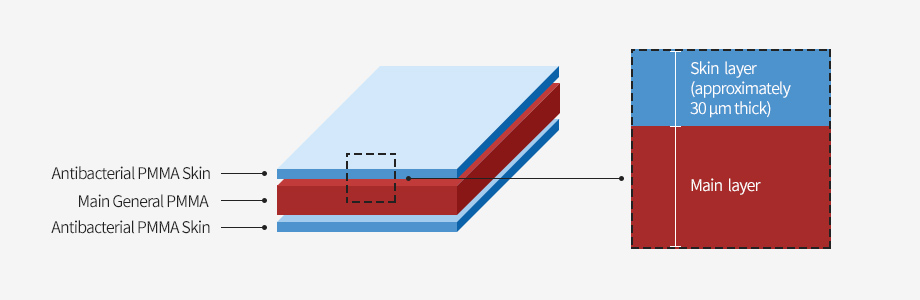

Co-Extrusion Sheet Structure
harmful bacteria |
anti-bacterial activation level |
---|---|
staphylococcuss |
4.6 |
Coliform bacillus |
4.0 |
- Antibacterial power : excellent antibacterial power against coliform bacillus / staphylococcus
harmful bacteria |
Antibacterial Functional SMMA |
Antibacterial Functional PMMA |
---|---|---|
staphylococcus |
4.5 |
4.6 |
Coliform bacillus |
3.5 |
6.1 |
- Transparency : Tt 90% ↑, Haze 10↓ (Based on the SMMA product with an antimicrobial function)
Item |
Condition |
Unit |
Anti |
Anti |
---|---|---|---|---|
Tt |
2mm |
% |
90.8 |
82.7 |
Haze |
2mm |
% |
4.8 |
29.0 |
